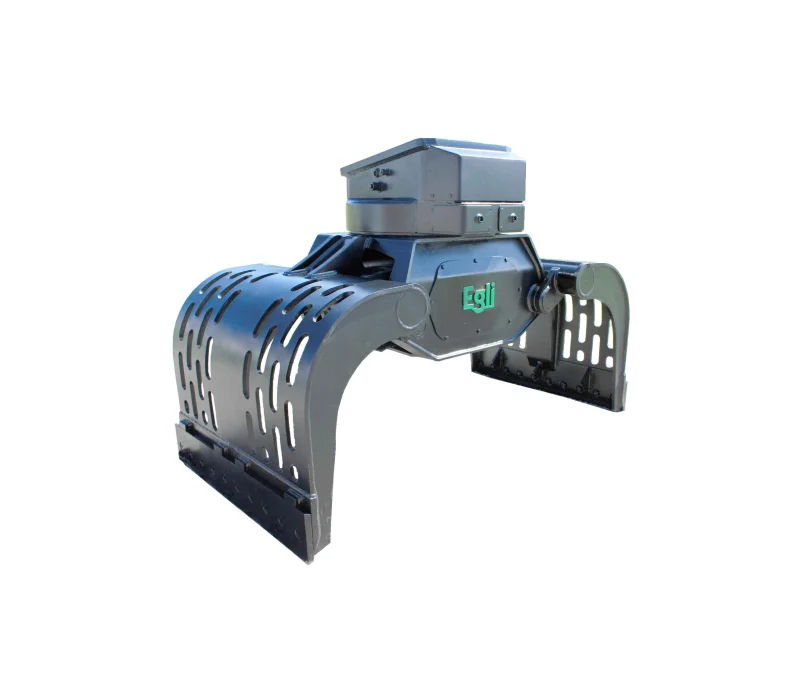

Sorting grapple

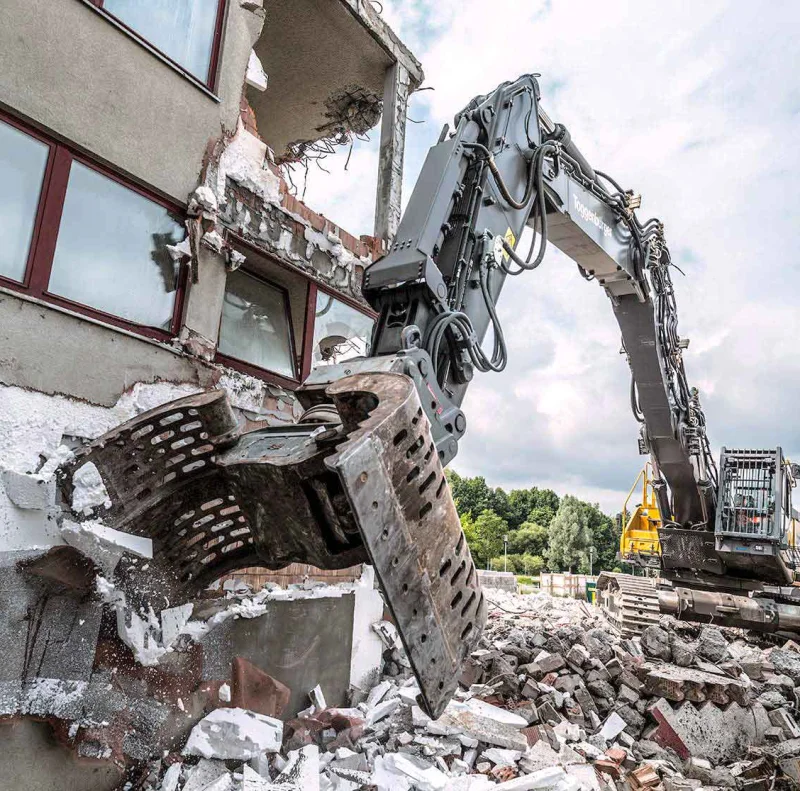

The Egli grapple is also useful for demolition work and stone-laying, earthworks and loading coarse bulk materials, as well as for loading bushes and shrubs.

Features of the SG 20 to SG 15-E sorting grapple

• depending on the type of adapter, internal routing of the hydraulic hoses is possible
• optional, without a rotator, e.g. for carrier device fitted with a tiltrotator
• two external rotation motors ensure high holding an rotational torque
  the rotation motors are fitted with a double safety valve
• double-bearing ball-bearing slewing ring for greater stability
• cylinder with load-holding valve, overpressure protection and end-of-storke cushioning
• the cylinder guard protects the cylinder from foreign objects
• robust opening and closing stops for a long service life
• stone-gripping teeth in the side blade for optimum grip (smooth side blade available as an option)
• internal stone-gripping teeth for smaller stones (available without internal teeth as an option)

Features of the G 5-E to SG 15-E multi-purpose grapple

• depending on the type of adapter, it is possible to route the hydraulic hoses through the interior
• SG 5-E rotary motor with gerotor; for models SG 8-E to SG 15-E, an external rotary motor provides high rotational and holding torque; the motors are protected by a double safety valve
  optional version without rotator, e.g. for carrier devices fitted with a tiltrotator
• cylinder protection: protects the cylinder against foreign objects
  cylinder with load-holding valve, overpressure protection and end-of-stroke cushioning (end-of-stroke cushioning on all models except the SG 5-E)
• stone-gripping teeth integrated into the side blade for optimum grip
• robust opening and closing stops for a long service life

Special grapples SG 20-E-U and SG 25-E-U for material handling

• bespoke cylinders specially designed for use in material-handling operations
• reinforced synchronised couplings, designed to withstand high stresses
• open shells are fitted as standard; closed shells are available as an option
• serrated side blades are fitted as standard; non-serrated blades are available as an option
• optionally fitted with line filters in the grapple rotation circuit to protect the rotary motors
• adapters with direct bolts mounting o bespoke adapters available on request
• bespoke shells available on request

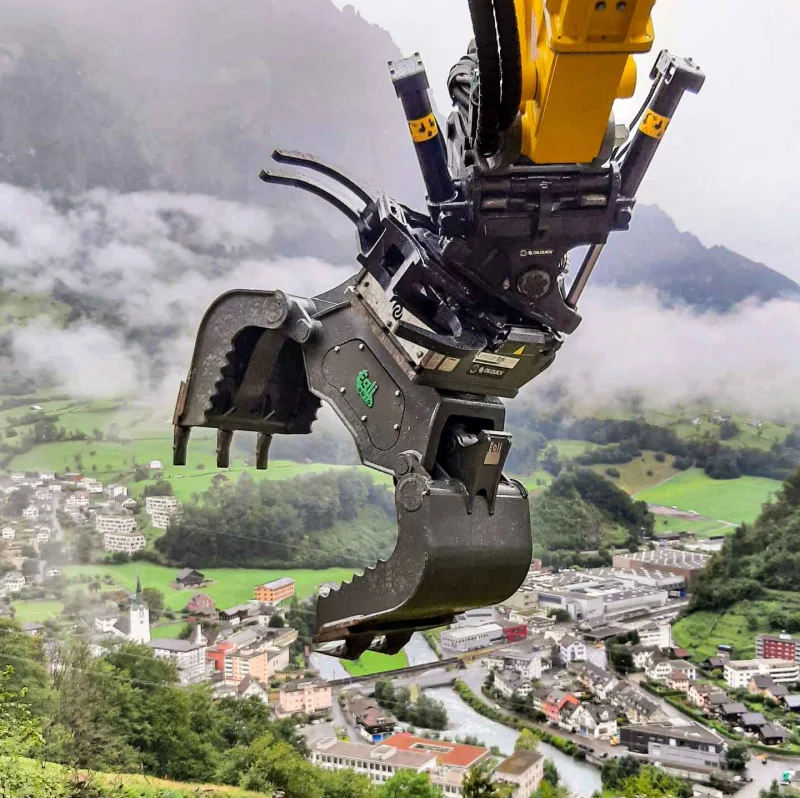

Special grappleSG 15-E-S for use with a spider excavator

• reinforced cylinder for a secure grip (SG 20-E cylinder)
• cavity width: 700 mm
• closed cavities
• the side blades are closer together, e.g. for greater efficiency when backfilling a stone wall
• bolted blades, with or without teeth
